BZK-R400A Fully Automatic Round Hard Candy Roll Stick Packaging Machine
Short Description:
The BZK-R400A is a high-speed, fully automatic stick roll pack machine designed for collating, feeding, and wrapping pre-formed circular hard candies using a double-layer paper strip folding mechanism
Packaging Style
Stick Roll Wrapping
Special features
● Programmable Motion Controller with HMI for integrated operation
● Automatic Paper Splicer
● Servo-Driven Paper Feeding & Cutting for precision wrapping
● Smart Safety Functions:Auto-paper stop when no candy detected
- Auto-stop when candy jamming
- Auto-stop when paper absence
- Auto-stop on paper blockage
● Intelligent Candy Collating System with mechanical pushing
● Dual-Purpose Chute: Candy collating input & finished product output
● Pneumatic Paper Roll Clamping/Release for rapid roll change
● Pneumatic Knife Holder Lifting
● Tool-Free Modular Design for easy disassembly & cleaning
● CE Certified
● IP65 Protection Rating
Main Data
Output
●Max. 350 pieces/min

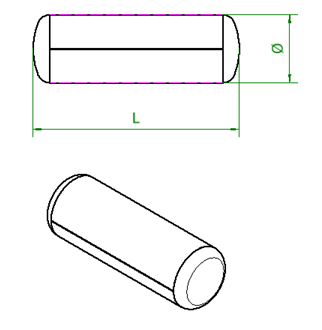

Product Dimensions (per stick)
● Length: 50 - 140 mm
● Diameter: Ø10–20 mm
Connected Load
● 25 kW
Utilities
● Compressed Air Consumption: 5 L/min
● Compressed Air Pressure: 0.4 ~ 0.7 MPa
Wrapping Materials
● Wax paper
● Aluminum paper
Wrapping Material Dimensions
● Max. Outer Diameter: 330 mm
● Min. Core Diameter: 76.2 mm
Machine Measurements
● Length: 4,030 mm
● Width: 1,600 mm
● Height: 2,300 mm
Machine Weight
● Approx. 4,500 kg
