ZHJ-SP30 TRAY PACKING MACHINE
Short Description:

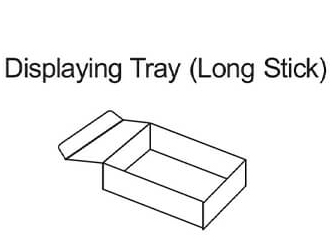

The ZHJ-SP30 tray cartoning machine is a special automatic packaging equipment for folding and packaging rectangular candies such as sugar cubes and chocolates that have been folded and packaged.
● Programmable motion controller, man- machine interface, integrated control
● Servo suction paper skin, servo conveying paper skin, positioning spray glue
● Servo-driven belt feeding, pneumatic push box
● Pneumatic lifting function of synchronous conveyor belt, easy to clean
● Electronic dispensing system
● Host mechanical overload protection
● Modular design, easy to disassemble and clean
● CE certification
● Protection level: IP65
● The whole machine has 8 motors, including 5 servo motors
Packing speed
-Maximum 30 boxes/minute
-Maximum 600 grains/minute
Product packaging size
-Length: up to 140 mm
-Width: up to 140 mm
-Thickness: 10-40 mm
Total power
-15 kw
Energy consumption
-Compressed air consumption: 5 liters/min
-Compressed air pressure: 0.4-0.6 mPa
Applicable packaging materials
-Hard paper
Machine size
-Length: 4374 mm
-Width: 1740 mm
-Height: 1836 mm
Machine weight
-About 2000 kg
