BFK2000MD FILM PACK MACHINE IN FIN SEAL STYLE
Short Description:

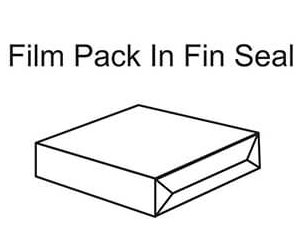

BFK2000MD film pack machine is desined to pack confectionery/food-filled boxes in fin seal style. BFK2000MD is equipped with 4-axis servo motors, Schneider motion controller and HMI system
● Servo drive for box Feeding chain
● Servo drive for longitudinal seal
● Servo drive for cross seal
● Servo drive for a pair of film feeding rollers
● Pneumatic reel core locking
● Assistant device for film run
● Centralized lubrication
● CE certification
Output
● Max. 200 packs/min
Product measurements
● Length: 50- 200mm
● Width: 20- 90mm
● Thickness: 5- 30mm
Connected load
● 9KW
Utilities
● Compressed air consumption：4L/min
● Compressed air pressure：0.4~0.6MPa
Wrapping materials
● Heat sealable foil, PP film
Wrapping material dimensions
● Reel dia.：Max. 330mm
● Core dia.：76mm
● Reel width: 60- 220mm
Machine measurement
● Length：3000mm
● Width：1340mm
● Height：1860mm
Machine weight
● 2500kg
BFK2000MD can be combined with BZP2000&BZT150 Boxing Wrapping Machines to carry out from inner wrap, box wrapping to film pack in fin seal style as an automatic wrapping line
