BZT1000 STICK PACK MACHINE IN FIN-SEAL
Short Description:

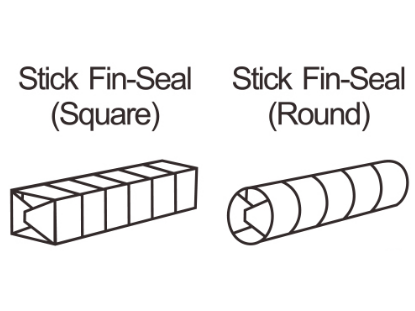

BZT1000 is an excellent high-speed wrapping solution for rectangle, round shaped candies and other preformed products in single fold wrapping and then fin-seal stick packing
Special features
-Programmable motion controller, HMI and integrated control
-Automatic splicer
-Servo motor driven assists wrapping paper pulling, feeding, cutting and positioned wrapping
-No candy no paper, automatic stop when candy jam appears, automatic stop when wrapping materials run out
-No candy no paper, automatic stop when candy jam appears, automatic stop when wrapping materials run out
-Intelligent candy feeding aligning and mechanical candy pushing
-Pneumatic automatic core locking of wrapping materials
-Pneumatic knife support lifting
-Modular design and easy to dismantle and clean
-CE safety authorized
Output
-Max. 1000 pcs/min
-Max. 100 sticks/min
Size Range
-Length: 15-20 mm
-Width: 12-25 mm
-Height: 8-12 mm
Connected Load
-16.9kw
Utilities
-Recycling cooling water consumption: 5 l/min
-Water temperature: 10-15℃
-Water pressure: 0.2 MPa
-Compressed air consumption: 5 l/min
-Compressed air pressure: 0.4-0.7 MPa
Wrapping Materials
-Wax paper
-Aluminum paper
Wrapping Material Dimensions
-Reel diameter: 330 mm
-Core diameter: 76 mm
Machine Measurements
-Length: 2300 mm
-Width: 2890 mm
-Height: 2150 mm
Machine Weight
-5600 kg
