BFK2000CD SINGLE CHEWING GUM PILLOW PACK MACHINE
Short Description:

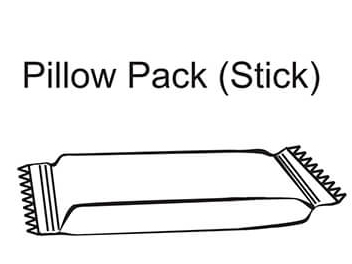

BFK2000CD single chewing gum pillow pack machine is suitable for cutting aged gum sheet (length:386-465mm,width: 42-77mm, thickness:1.5-3.8mm)into small sticks and packing single stick in pillow pack products. BFK2000CD is equipped with 3-axis servo motors, 1 piece of converter motors, ELAU motion controller and HMI system are employed
● Slicer is driven by independent motor with frequency converter
● Feeding chain is driven by servo motor
● Longitudinal and horizontal seals are driven by servo motors
● Pneumatic core locking system
● Centralized lubrication
Output
● Max. 600 products/min
Product measurements
● Length: 42- 77mm
● Width: 11-21mm
● Thickness: 1.5-3.8mm
Connected load
● 9KW
Utilities
● Compressed air consumption: 4L/min
● Compressed air pressure: 0.4-0.6Mpa
Wrapping materials
● Heat sealable foil
● PP film
Material dimensions
● Reel diameter: 330mm
● Reel width: 60-100mm
● Core diameter: 76mm
Machine measurements
● Length: 2530mm
● Width: 2300mm
● Height: 1670mm
Machine weight
● 2500kg
Depending on the product, it can be combined with UJB mixer, TRCJ extruder, ULD cooling tunnel to be a production line for stick chewing gum
