BFK2000CD Single-Piece Chewing Gum Flow Wrapper
Short Description:

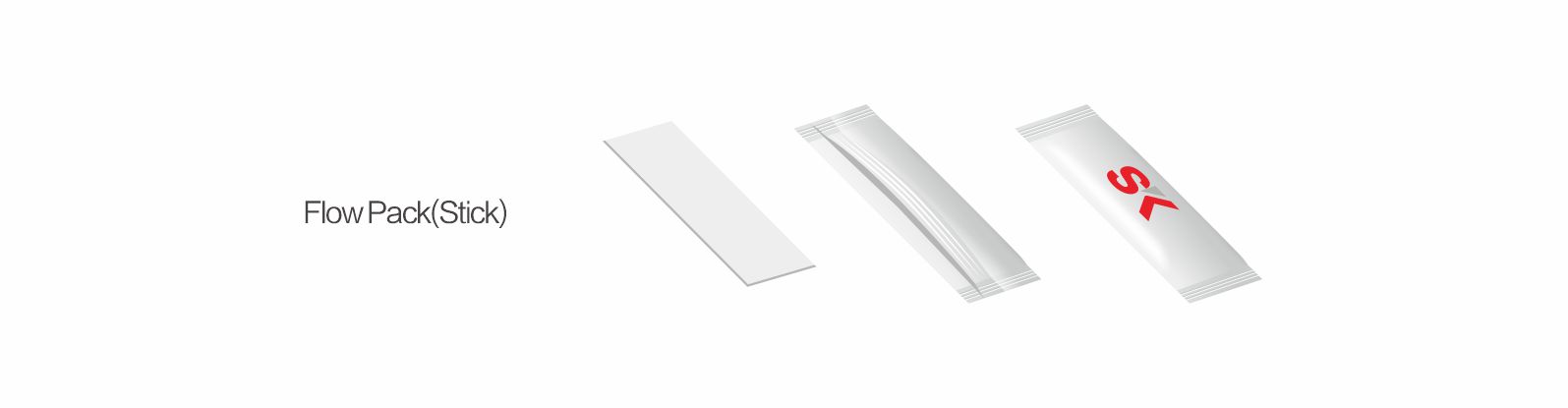

The BFK2000CD is an automatic flow wrapper designed for high-speed slicing and packaging of pre-aged chewing gum sticks (386–465 mm × 42–77 mm × 1.5–3.8 mm) into individual pillow packs
Equipped with three servo axes, one inverter-driven motor, an ELAU motion controller, and a bus-integrated HMI system, the machine ensures precise synchronization, reliable operation, and easy maintenance
1. MAG-LEV carrier quantity is configurable based on production capacity demands
2. Recirculating workstation design significantly optimizes floor space utilization
1. Quick-change modules enable instant switching of carton profiles and dimensions
2. Selective activation of carton gripping channels supports seamless transition between high/low packaging speeds
1. Tool-free clamping system on MAG-LEV carriers enables rapid fixture changeovers, cutting setup time by 60%
2. Universal fixtures adapt to multi-size cartons, eliminating change parts and reducing changeover time by 50%
3. Dynamically adjustable glue guns allow on-the-fly size switching for rapid product format changes
Special features
●Independent inverter-driven cutting unit
●Servo-controlled product conveyor chain
●Separate servos for longitudinal and transverse sealing
●Pneumatic automatic reel loading and clamping
●Centralized lubrication system
Output
- Max.: 850 pcs/min
Product Measurements
- Length: 42–77 mm
- Width: 11–21 mm
- Thickness: 1.5–3.8 mm
Connected Load
- 9 kW
Utilities
- Consumption: 4 L/min
- Pressure: 0.4–0.6 MPa
Wrapping Materials
- PET
- PP film
- Heat-sealable wrapping materials
Wrapping Material Dimensions
- Core: Ø76 mm
- Max.: Ø330 mm
- Width: 60–100 mm
Machine Measurements
- Length: 2,530 mm
- Width: 2,300 mm
- Height: 1,670 mm
Machine Weight
- 2500 kg
Combinations
Depending on the product, it can be combined with UJB mixer, TRCJ extruder, ULD cooling tunnel to be a production line for stick chewing gum
