BNB400 BALL SHAPED LOLLIPOP WRAPPING MACHINE

BNB400 BALL SHAPED LOLLIPOP WRAPPING MACHINE

Short Description:

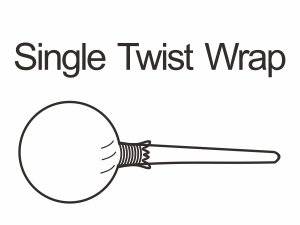

BNB400 is designed for ball-shaped lollipop in single twist style (Bunch)


Product Detail

Main Data

Special features

PLC Motion control system, Touch screen HMI, Integrated control

Servo driven wrapping materials feeding and positioned wrapping

Servo driven paper cutting

No product/no paper machine stops; door opened machine stops

Film antistatic device

Modular design, easy to maintain and clean

CE certification


  • Previous:
  • Next:

  • Output

    350-400pcs/min

    Size Range

    Ball diameter: 20-35mm

    Stick diameter: 3-5.8mm

    Total length: 72-105mm

    Connected Load

    4 kw

    Utilities

    Compressed air consumption: 4 l/min

    Compressed air pressure: 0.4-0.6MPa

    Wrapping Materials

    Cellophane

    Polyurethane

    Heat sealable foil

    Wrapping Material Dimensions

    Reel diameter: 330 mm

    Core diameter: 76mm

    Width: 75-130mm

    Machine Measurements

    Length: 1950mm

    Width: 1900mm

    Height: 1900mm

    Machine Weight

    1500kg
