TRCZ135 Horizontal Rope Sizer
Short Description:

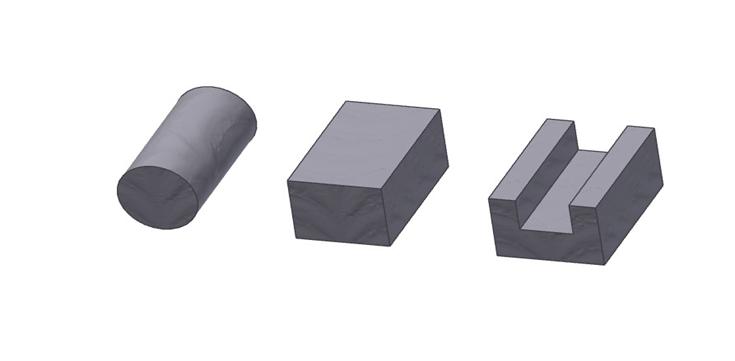

The TRCZ135 Horizontal Rope Sizer adjusts the distance between two forming wheels by rotating the adjusting handwheels on the machine, thereby producing candy ropes that meet dimensional requirements. It can also produce candy ropes in various shapes such as round, square, and concave by replacing the forming wheels. The TRCZ135 can be equipped with 2 to 5 pairs of forming wheels according to product attributes, meeting the shaping needs of various types of candy ropes including chewy candies, toffees, soft candies, and bubble gums.
Special features
● Each set of forming wheels is driven by an independent motor
● Forming wheels can be replaced arbitrarily
● Handwheel for freely adjusting the horizontal spacing of forming wheels
● Wide adaptability to sugar ropes of various sizes
● Programmable motion controller, human-machine interface, integrated control
● Screen displays abnormal alarm prompts for various sections
● Modular independent design, easy disassembly and cleaning
● CE Certification
Rope Speed
●Base speed 12-17 meters/min, can match extrusion speed according to actual requirements
Rope Size Range
●Width: 5-30 mm
●Height: 5-30 mm
Connected Load
●2 kW
Machine Dimensions
●Length: 540 mm
●Width: 750 mm
●Height: 1,600 mm
Machine Weight
●400 kg
