BNS800 BALL-SHAPED LOLLIPOP DOUBLE TWIST WRAPPING MACHINE
Short Description:

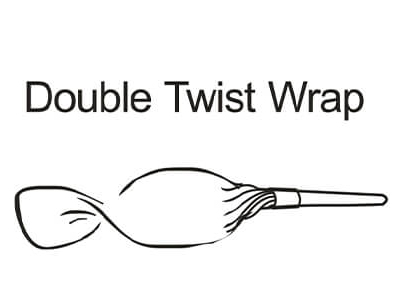

BNS8oo ball-shaped lollipop double twist wrapping machine is designed to wrap ball-shaped lollipops in double twist style
Special features
- PLC Motion control system, Touch screen HMI, Integrated control
- Servo wrapping materials feeding and cutting, positioned wrap
- No product, no wrapping materials and door open machine stops
- Film antistatic device
- Two systems for twist heating seal device: high frequency electromagnetic induction heater; LEISTER air conduction heater
- Modularity design, easy for maintenance and clean
- CE certification
Output
- 700-800 pcs/min
Size Range
- Ball dia.Φ：20-38 mm
- Bar dia.Φ：3.0-6.5 mm
- Total length: 75–130 mm
Connected Load
- 16.7 kw
Utilities
- Dry compressed air consumption：3 m3/h
- Compressed air pressure：400-600 kPa
- Circulating soft water for induction heater: 15-20℃
Wrapping Materials
- Cellophane
- Polyurethane
- Heat sealable foil
Wrapping Material Dimensions
- Width：74-130 mm
- Core dia.：76 mm
Machine Measurement
- Length：2700 mm
- Width：2000 mm
- Height：1800 mm
Machine Weight
- 2500 kg
