BZH-N400 Fully Automatic Lollipop Cutting and Packaging Machine
Short Description:
The BZH-N400 is a fully automatic lollipop cutting and packaging machine, primarily designed for soft caramel, toffee, chewy, and gum-based candies. During the packaging process, the BZH-N400 first cuts the candy rope, then simultaneously performs one-end twisting and one-end folding packaging on the cut candy pieces, and finally completes the stick insertion. The BZH-N400 utilizes intelligent photoelectric positioning control, inverter-based stepless speed regulation, PLC and HMI for parameter setting

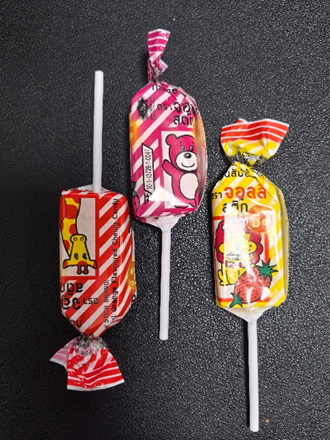

Packaging Style
Lollipop single twist
Special features
●The transmission system uses an inverter for stepless speed regulation of the main motor
●No product no wrapping materials; no product no sticks
●Stops automatically on candy jam or wrapping material jam
●No-stick alarm
●The whole machine adopts PLC control technology and a touch-screen HMI for parameter setting and display, making operation convenient and automation level high
●Equipped with a photoelectric tracking positioning device, enabling precise cutting and packaging of wrapping material to ensure pattern integrity and aesthetic appearance
●Utilizes two paper rolls. The machine is equipped with an automatic splicing mechanism for wrapping material, allowing automatic splicing during operation, reducing roll change time, and improving production efficiency
●Multiple fault alarms and automatic stop functions are set throughout the machine, effectively protecting personnel and equipment safety
●Features such as "no wrapping without candy" and "automatic stop on candy jam" save packaging material and ensure product packaging quality
●Reasonable structural design facilitates cleaning and maintenance
Main Data
Output
● Max. 350 pieces/min
Product Dimensions
● Length: 30 - 50 mm
● Width: 14 - 24 mm
● Thickness: 8 - 14 mm
● Stick Length: 75 - 85 mm
● Stick Diameter: Ø 3 ~ 4 mm
Connected Load
●8.5 kW
- Main Motor Power: 4 kW
- Main Motor Speed: 1,440 rpm
● Voltage: 380V, 50Hz
● Power System: Three-phase, four-wire
Utilities
● Compressed Air Consumption: 20 L/min
● Compressed Air Pressure: 0.4 ~ 0.7 MPa
Wrapping Materials
● PP film
● Wax paper
● Aluminum foil
● Cellophane
Wrapping Material Dimensions
● Max. Outer Diameter: 330 mm
● Min. Core Diameter: 76 mm
Machine Measurements
● Length: 2,403 mm
● Width: 1,457 mm
● Height: 1,928 mm
Machine Weight
● Approx. 2,000 kg
