BZT200 FS STICK PACKING MACHINE

BZT200 FS STICK PACKING MACHINE

Short Description:

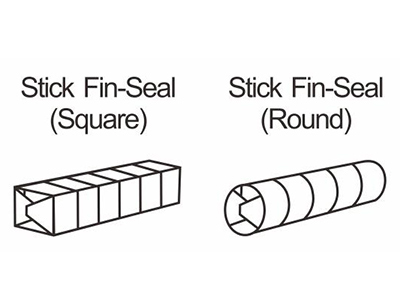

BZT200 is for wrapping individual formed toffees, milky candies, hard candy products and then overwrapping as a stick in fin-sealed pack


Product Detail

Main Data

Special features

PLC control, touch screen HMI, integrated control

Servo driven wrapping materials feeding and positioned wrapping

No candy no paper, automatic stop when candy jam appears, automatic stop when wrapping material run out

Modular design, easy to maintain and clean

Fin-seal packing makes storage time of product long lasting

CE certification


  • Previous:
  • Next:

  • Output

    300-350pcs/min

    30-35sticks/min

    Size Range

    Single Product Dimensions (Round)

    Φ: 15-21mm

    Height: 8.5-10mm

    Products Per Stick Pack

    5-10 pcs/stick

    Stick Pack Dimensions

    Φ: 16-22 mm

    Length: 53-120mm

    Single Product Dimensions (Square)

    Length: 20-30 mm

    Width: 15-25mm

    Height: 8-10 mm

    Product Per Stick Pack

    5-10 pcs/stick

    Stick Pack Dimensions

    Length: 50-120 mm

    Width: 21-31 mm

    Height: 16-26 mm

    Special sizes upon request

    Connected Load

    5 kw

    Utilities

    Compressed air consumption: 5 l/min

    Compressed air pressure: 0.4-0.6MPa

    Wrapping Materials

    Aluminum paper

    PE paper

    Heat sealable foil

    Wrapping Material Dimensions

    Reel diameter: 330mm

    Core diameter: 76mm

    MachineMeasurements

    Length: 3000 mm

    Width: 1600mm

    Height: 1800mm

    Machine Weight

    2600kg
