ZHJ-M200 Fully Automatic Horizontal-Push Cartoning Machine
Short Description:

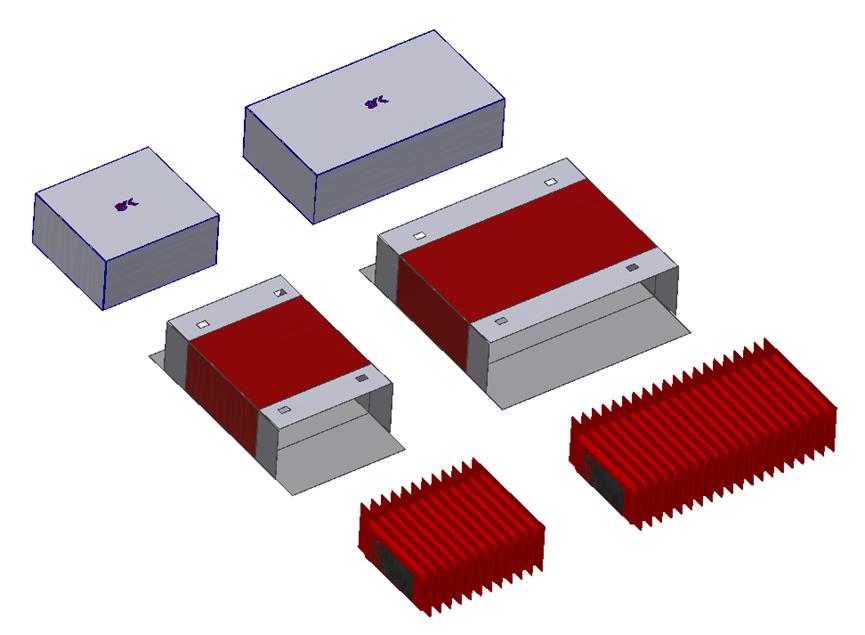

The ZHJ-M200 Fully Automatic Side Loading Cartoning Machine is designed to load pillow packs, three-side sealed bags, pouches, or other pre-packaged products into cartons in various arrangement patterns, achieving high-speed, fully automatic cartoning. The ZHJ-M200 is highly automated; its integrated functions including automatic product arranging, carton sucking and forming, loading, hot melt gluing sealing, and batch number printing are all automatically controlled by a unified PLC. It also allows for quick product changeover, meeting the needs of various packaging combinations with a single machine.
Side Loading Cartoning
Special features
● Servo conveying system
● Servo motor and electric cylinder for carton loading
● Servo motors and pneumatic cylinders for carton forming and closing
● Adaptable to various carton sizes and product arrangement patterns
● Programmable motion controller, human-machine interface, integrated control
● Screen displays abnormal alarm prompts for various sections
● "Feed detection", "No carton - no loading", "Missing carton alert", "Automatic stop upon jam"
● Multi-stage differential speed belt feeding with detection and rejection system
● Dual servo alternating arrangement and material jam protection
● Single-station carton suction and glue dispensing forming
● Quick changeover of parts for different packaging specifications
● Automatic glue dispensing system
● Modular independent design, easy disassembly and cleaning
● CE Certification
Speed:
● Max. 30 boxes/min
Carton Size Range
● Length: 50-350 mm
● Width: 30-300 mm
● Height: 20-150 mm
Connected Load
● 29 kW
Utilities
● Compressed air consumption: 80 L/min
● Compressed air pressure: 0.4-0.6 MPa
Wrapping Materials
● Cardboard
Machine Measurements
● Length: 4,800 mm
● Width: 2,540 mm
● Height: 2,000 mm
Machine Weight
● 3,000 kg
